3PH OMRON PLC Double Glazing Glass Machine Aluminum Spacer Butyl Extruder Machine

Brand Name : WGM

Model Number : BFGJ03

Certification : ISO CE BV

Place of Origin : China

MOQ : 1

Price : Negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 200 sets per year

Delivery Time : 10 to 30 days

Packaging Details : Plywood Pallet

Voltage : AC380V 3ph 50HZ

Total power : 3.75 KW

Butyl volume : 14L

Spacer width : 6mm-25mm

Contact Now

380V 50HZ 3PH OMRON PLC Aluminum Spacer Butyl Extruder Machine For Double Glass

Insulating Glass Profuction LIne

Feature:

1. Easily controllable by Omron PLC control system with touch screen interface.

2. Machine frame is made by laser cutting and CNC bending, tidy and stable.

3. Gluing height and running speed is adjustable.

4. A timer enables the pre-heating of butyl ahead of the start of operation.

5. Possess of unique butyl quantity alarm system.

6. Imported hydraulic system: Germany MAXIMATOR hydraulic system(running two million times and no error)

with Italy ATOS solenoid valve.

7. The feeding nozzle can be positioned to deliver uniform sealing.

8. Timing switch can be selected.

Technical Parameter:

Machine size	3000mm(L)x600mm(W)x950mm(H)
Spacer width	6mm-25mm
Maximal size	2500mmx2500mm
Minimal size	250mmx250mm
Speed	0-25m/min
Butyl volume	14L
Power supply	AC380V 3ph 50HZ
Total power	3.75kw

Main components:

No.	Name	Brand
1	Low-voltage electrical component	SCHNEIDER
2	PLC	OMRON
3	Touch screen	OMRON
4	Transducer	OMRON
5	Temperature controller	OMRON
6	Approach switch	AUTONIC
7	Photoelectric switch	AUTONICS
8	Pneumatic pump	MAXIMOTOR
9	Hydraulic solenoid valve	AUTONICS
10	Air parts	AIRTAC
11	Air-hydraulic pressure cylinder	HUAYING
12	Motor	DONGBANG

Service:

Pre- sale service

After - sale service

* Inquiry and consulting support.

* Professional customize

* Visiting our factory.

* Provide factory layout according to your factory size in advance

* Provide English Version of

Installation/Operation/Service/Maintenance Manual.

* Online support

* Engineers available to service machinery overseas.

* Video technical support

* Field installation commissioning and training

* Field maintenance and repair service

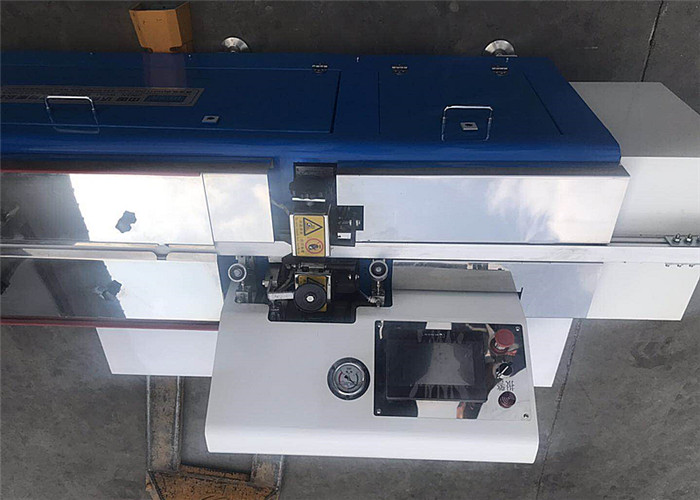

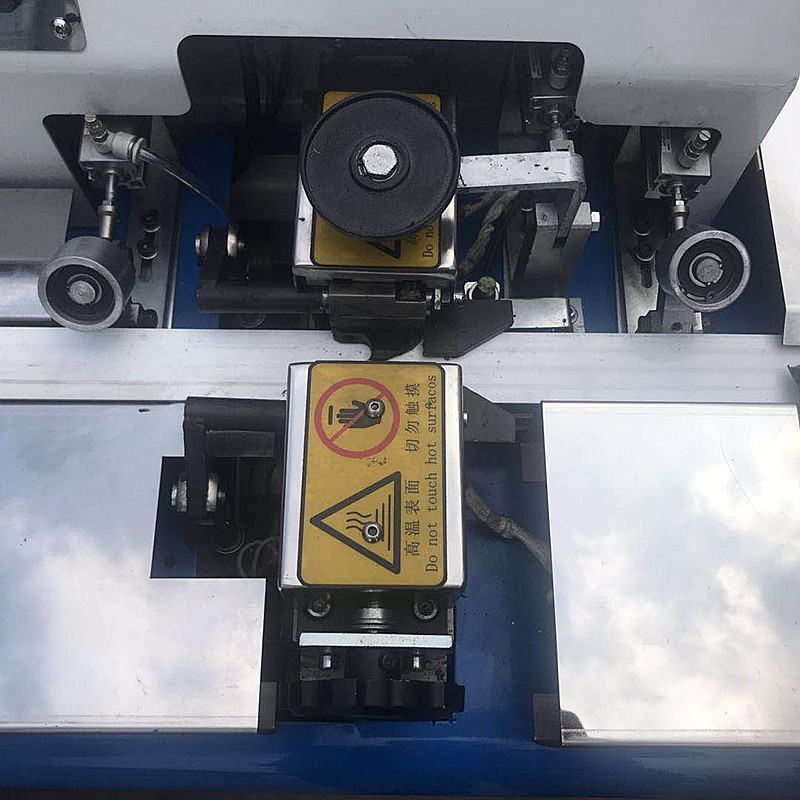

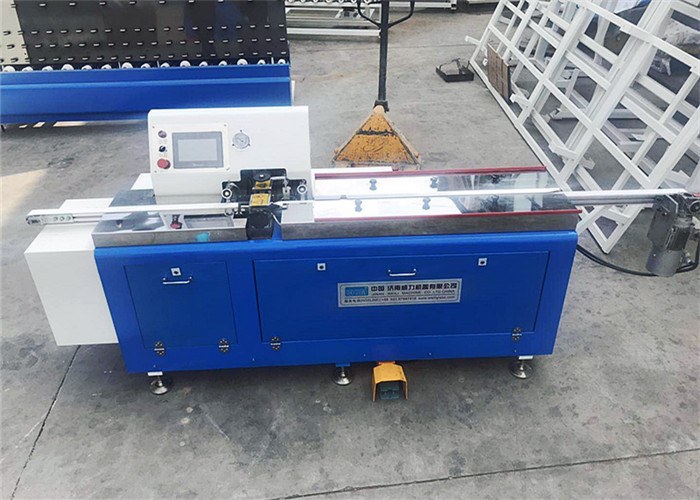

Real photos:

3PH OMRON PLC Double Glazing Glass Machine Aluminum Spacer Butyl Extruder Machine

Package:

1.Plastic film with plywood pallet

2.In container.

3.As customers requirement.

Shipping Methods:

1. Sea shipping for large amount cargos (GW>500kgs)

2. Air shipping normally used for GW between 100kgs to 500kgs

3. By express, such as DHL, Fedex, TNT, UPS. This method is used for small amount cargos
