Automatic Insulating Glass Sealing Robot Double Glazing Making Machine

Brand Name : WGM

Model Number : WL2500

Certification : ISO CE BV

Place of Origin : China

MOQ : 1

Price : Negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 200 sets per year

Delivery Time : 10 to 30 days

Packaging Details : Plywood Pallet

Transmission speed : 0-48m/min

Sealing width : 6-24MM

Extruding width : 4-20mm

Max glass size : 2500x3500mm

Butyl heating time : 30-40min

Contact Now

Insulating Glass Production Line Machine

with automatic silicone sealing robot

Feature:

1) Automatically adjust nozzle extending width according to the glass width

2) Pressure regulation set via human-machine interface, working smoothly and operated conveniently

3) Intelligent dispensing system is able to calculate the amount of sealant needed.

4) Sealing head floating pressure intelligent control.

5) Automatic sealant compensation at the corners, sealing supplementary time adjustable

6) Can be either used standalone, or integrated into existing I.G production line.

7) Sealant extruded by hydraulic cylinder, performance is smooth and uniform

9) Circa 13 servo motors control system, can work with triple,shpe and step insulating glass

8) V block type synchronous belt ,make sure the smooth glass transmission and accurate positioning,

also can reduce the phenomenon of belt sticking by sealant .

Technique Parameter:

Max glass size	2500x3500mm
Min glass size	300x300mm
Glass thickness	3-12mm
Insulating glass thickness	12-56mm
Sealing width	6-24mm
Sealing speed	5-30m/min
Sealing depth	2-15mm
Conveyor speed	0-48m/min
Power supply	13kw
Air supply	0.7 Mpa
Working height	520-580mm
Dimension	82900(L)x3000(W)x2950(H)mm

Accessories:

Motion controller(MP2200)	YASKAWA	JAPAN
Servomotor(7series)	YASKAWA	JAPAN
Control module(IRO2310)	YASKAWA	JAPAN
Transducer	SCHNEIDER	FRANCE
Photoelectric switch	AUTONICS	KOREA
Approach switch	AUTONICS	KOREA
Touch screen	SCHNEIDER	FRANCE
Low-voltage component	SCHNEIDER	FRANCE
Pilot-operated type proportional flood valve	JILI	TAIWAN
Precise adjust pressure valve(five series)	SMC	JAPAN
Single -way valve	KOMPASS	TAIWAN
Air treatment	ATRTAC	TAIWAN
Air solenoid valve	AIRTAC	TAIWAN
Air cylinder	AIRTAC	TAIWAN
Liner guide rail	HIWIN	TAIWAN

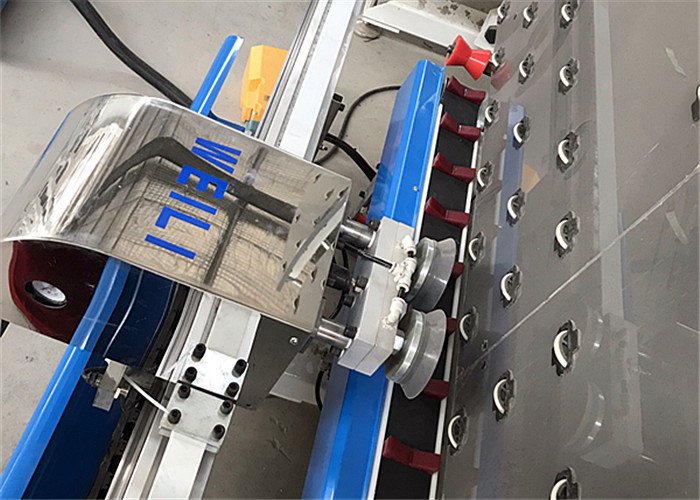

Show details:

Automatic Insulating Glass Sealing Robot Double Glazing Making Machine

Package:

1.In container.

2. Plywood pallet with Plastic film.

3.As customers requirement.

How to send us inquiry:

1. Directly contact by below email or Whatsapp/wechat.

2. You can send us inquiry here.

Contact Us:

Email: weili005@weiliglass.com

Mobile/Whatsapp/Wechat: +8615154132850
