2000MM full automatic vertical insulating glass silicone sealant sealing robot
Usage:
Auto sealing robot instead of manual sealant spreading machine,it operate easily and help customer improve efficiency
1 machine can produce 700-800 suqare meters one day
2 can seal silicone and polysulfide
Features:
1 adopted YASKAWA servo control system, motion controller and controller card, performance is stable, besides we adopt 6 axis servo motor,6sevo drives to make machine run with high precise.
2 machine can seal for double glazing and triple glazing,(step glazing and shape glazing optional)
2 glue nozzle can seal the middle of the spacer bar to make seal even and full
3 pecise adjustment for the mixing ratio of the sealant.
4 can measure the depth of extruding sealant and then adjust sealing speed
5 measure insulating glass thickness automatically and then adjust belt V position to make sure working height
6 photoelectric can scan the glass size automatically
Technique parameter:
| Product model | WL2000-31 |
| Min.glass size | 300*450mm |
| Max.glass size | 2500*3500mm |
| Glass thickness | 3-12mm |
| Sealant-mixing system | Double Sealant-mixing system |
| Insulating glass thickness | 12-56mm |
| Sealing speed | 5-30m/min |
| Sealing width | 6-24mm |
| Sealing depth | 2-15mm |
| Conveyor speed | 0-48m/min |
| Power supply | 13KW |
| Air supply | 0.5-0.8Mpa |
| Working height | 520-580mm |
| Dimension | 8750*3000*3400mm |
Main Electric components:
| No. | Name. | Brand | Country |
| 1 | Servo motor | YASKAWA | Japan |
| 2 | Motion controller | YASKAWA MP2200 | Japan |
| 3 | Transducer | Schneider | France |
| 4 | Photoelectric | Omron | Japan |
| 5 | Approach switch | AUTONICS | Korea |
| 6 | Low-voltage electrical | Schneider | France |
| 7 | 10.3 inch Touch screen | Schneider | France |
| 8 | Pilot-operated type proportional flood valve | HNC | Taiwan |
| 9 | Precise adjust pressure valve(5pieces) | SMC | Japan |
| 10 | Air treatment | Airtac | Taiwan |
| 11 | solenoid valve | Airtac | Taiwan |
| 12 | Air cylinder | Airtac | Taiwan |
| 13 | One-way valve | KOMPASS | TAIWAN |
Details:
Mechanical Part

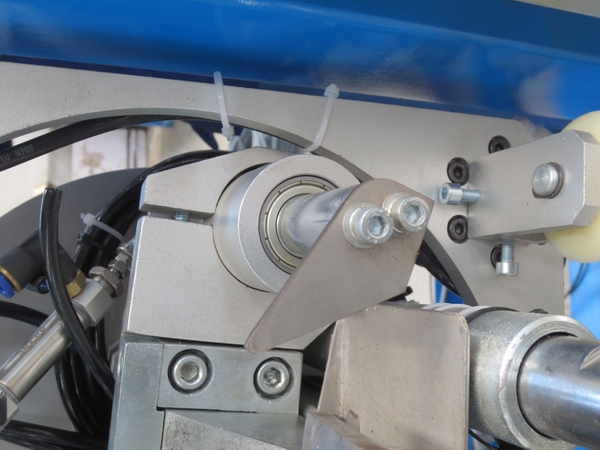

glue depth scanner

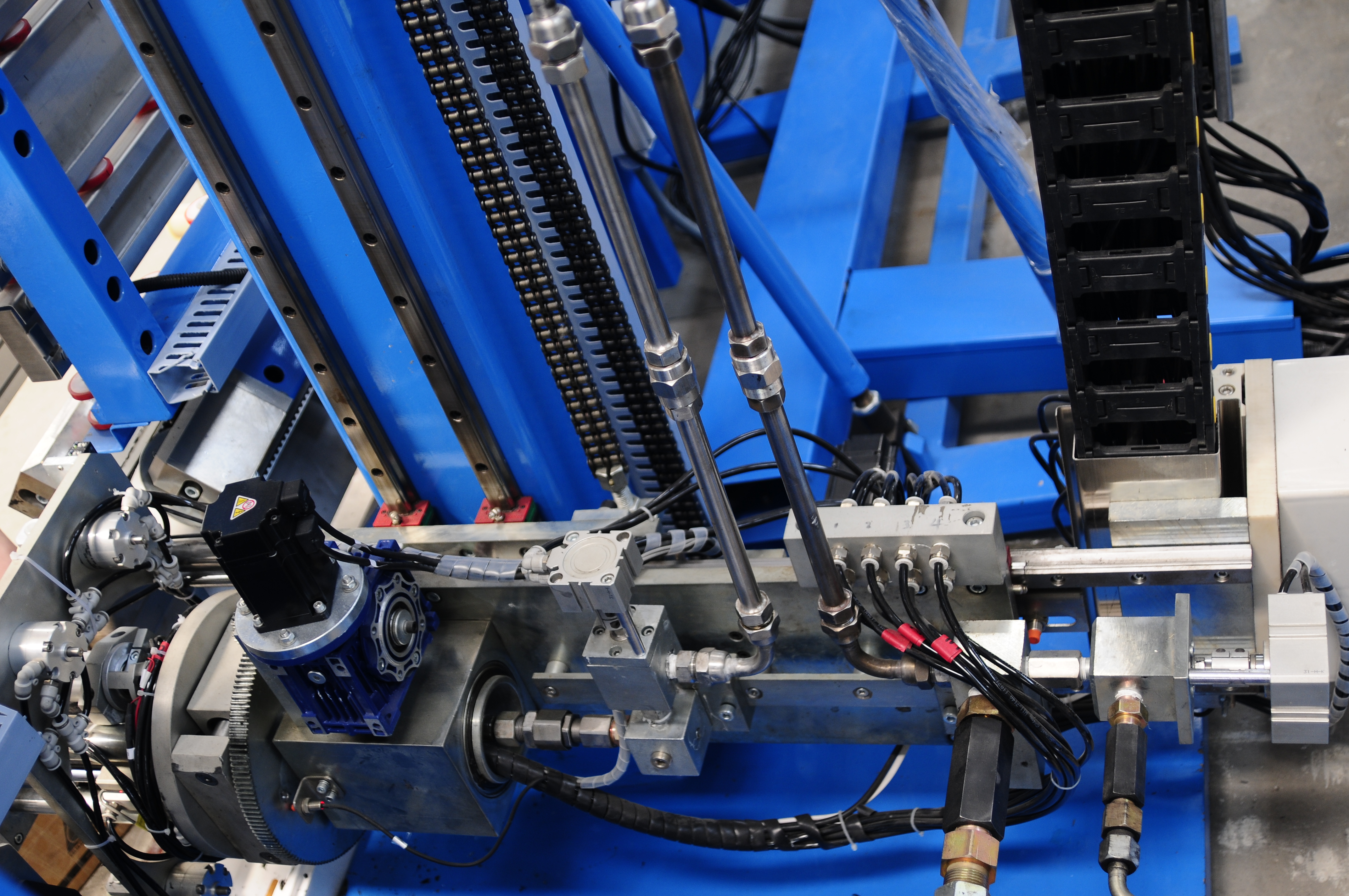

Sealant mix system

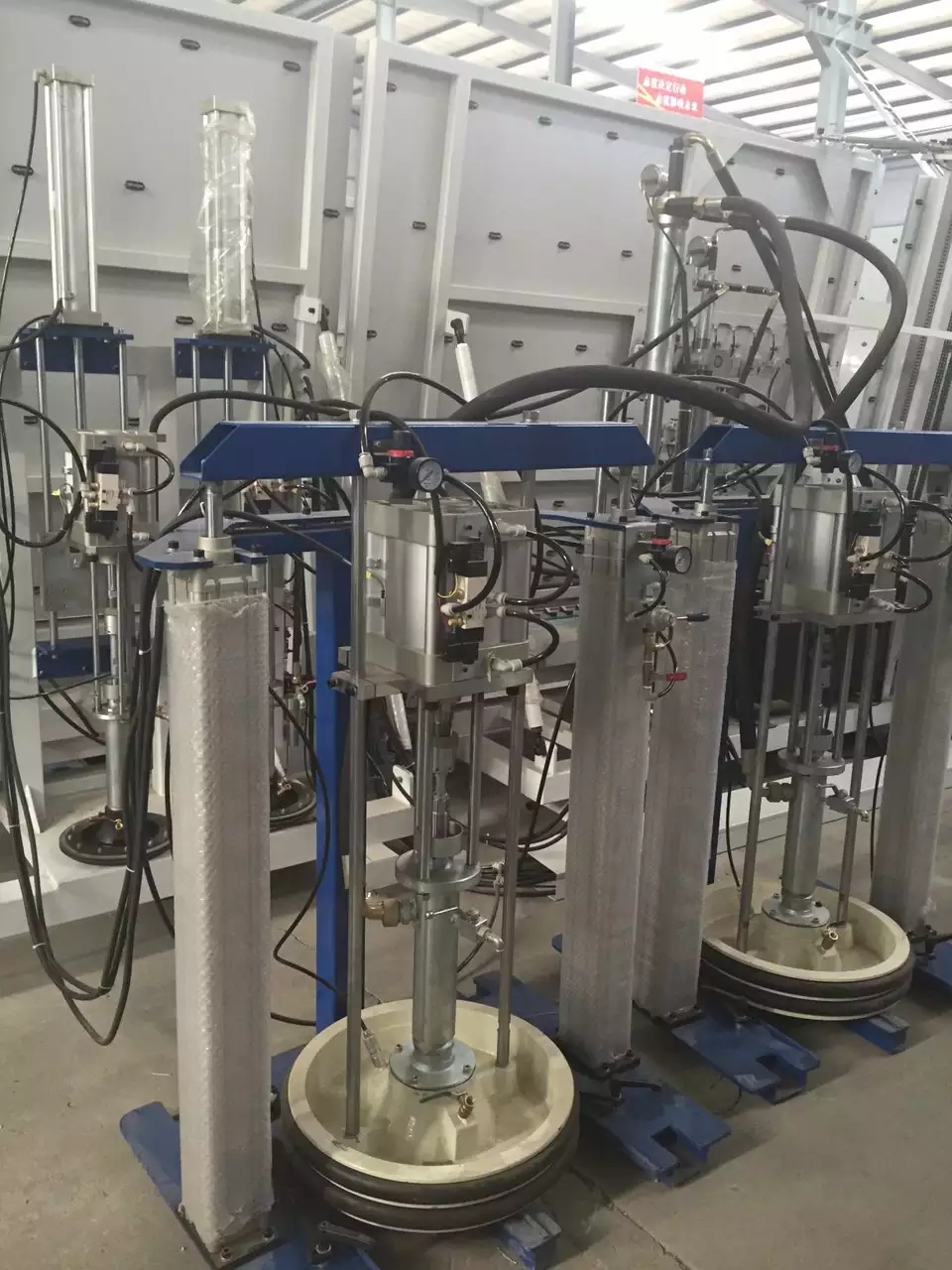

Sealing pump system
Electric components
It adopts YASKAWA control system to ensure performance stable.

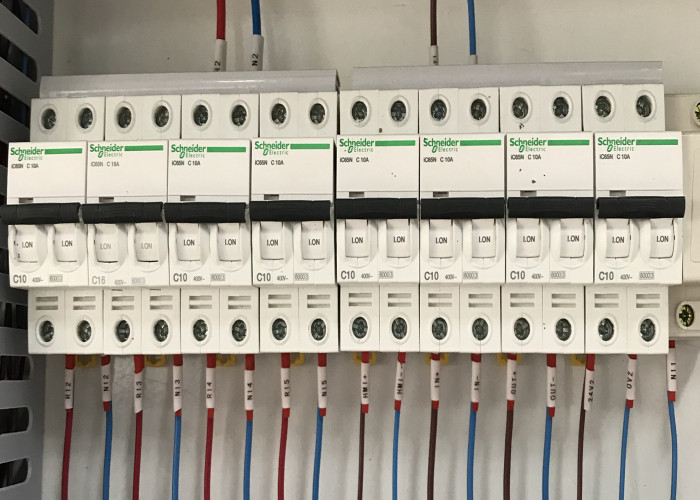

Our low-voltage components adopts SCHNEIDER brand

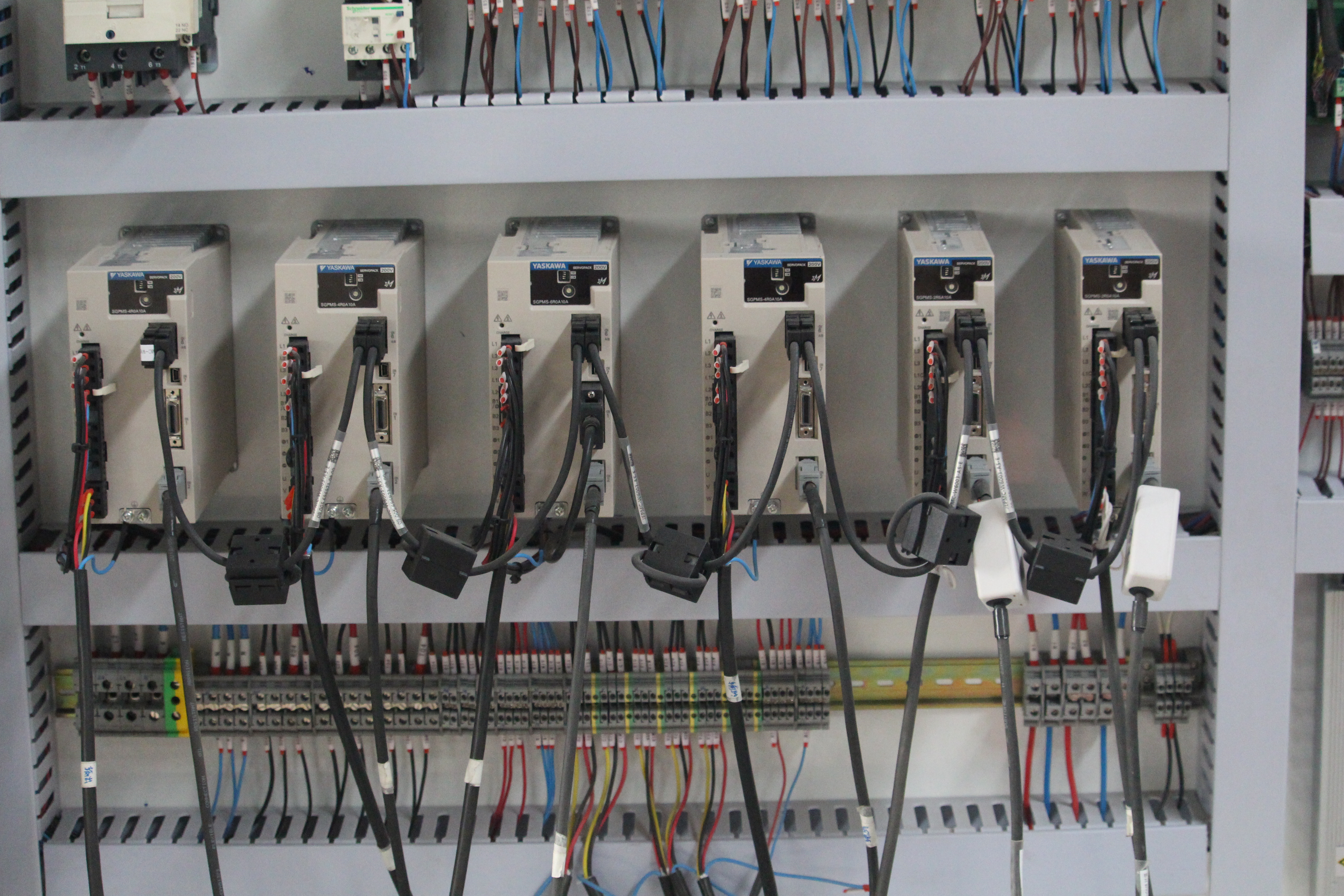

YASKAWA SERVO DRIVE
DELIVERY PHOTO:
After sales service
1 Online support,for example email and open camea to solve problems
2 Field installation, commissioning and training
3 Field maintenance and repair service
4 Video technical support
