Automatic argon gas filling machine insulating glass production line
with Gas filling percent ≥90%
Technical Parameter:
| Power Supply | 380V/50HZ 37.5Kw |
| Dimension(LxWxH) | 21600*2800*3450mm |
| Production quantity | 600-700IG units/8hs |
| Gas filling percent | ≥90% |
| Max Glass Size | 2500x3500mm |
| Min Glass Size | 300x450mm |
| Washing Glass Thickness | 3-15mm |
| Washing Glass Speed | 0-10m/min |
| Insulating Glass Thickness | ≤48mm |
| Transmission Glass Speed | 45m/min |
| Compressed Air | 0.8m³/min |
| Gas filling time | 3~5S |
| Air Pressure: | 0.7Mpa |
| Environment temperature | 7-50℃ |
Feature:
1.Achieve the functions of outside and inside assembly, automatically fill argon gas.
2.Adopts the Schneider PLC to control the working condition and touch screen.
3.Automatic detect coated surface of coating glass and Low－ E glass.
4.Air knife can automatic adjust according to glass thickness.
5.Brushes’ rotate speed variable frequency drive．
6.Aluminum spacer and glass automatic positioning system.
7.Automatic detect the length and height of glass, automatic adjust the best gas filling time.
8.Automatic gas filling press machine adopt 4 servo motors, which has assembling, pressing and automatic argon gas filling
function.Ensure the insulating glass argon gas concentrate ≥90%.
9.It has remote monitor and program upgrade functions.
Main Electrical Components:
| No. | Name | Brand | Brand Place |
| 1 | PLC | Schneider | France |
| 2 | 10．0inch Touch Screen(10.0) | Schneider | France |
| 3 | Photoelectric Switch | Jia le | Switzerland |
| 4 | Limit Switch | Jia le | Switzerland |
| 5 | Transducer | Schneider | France |
| 6 | Low-voltage electric components | Schneider | France |
| 7 | Straight Guide Rail | HIWIN | China |
| 8 | Driving Wheel | Polyurethane | China |
| 9 | Soft Brushes | φ180mm High Temperature Nylon Can wash low-e glass | China |
| 10 | Cleaning Section | 304 Stainless steel | China |
| 11 | Bearing of Cleaning Section | SKF(oil-free lubrication waterproof) | SWEDEN |
| 12 | Transmission Motor | Chengbang | CHINA Taiwan |
| 13 | Hydraulic Parts | HUADE | China |
| 14 | Pneumatic components, like solenoid valve, air cylinder | SMC | Japan |
| 15 | Servo motor | SIMENS | GERMANY |
| 16 | Driver | SIMENS | GERMANY |
| 17 | LOWE SENSOR | KEYENCE | JAPAN |
Service:
| Pre- sale service | After - sale service |
| * Inquiry and consulting support. * Professional customize * Visiting our factory. * Provide factory layout according to your factory size in advance | * Provide English Version of Installation/Operation/Service/Maintenance Manual. * Online support * Engineers available to service machinery overseas. * Video technical support * Field installation commissioning and training * Field maintenance and repair service |
Real part photos:

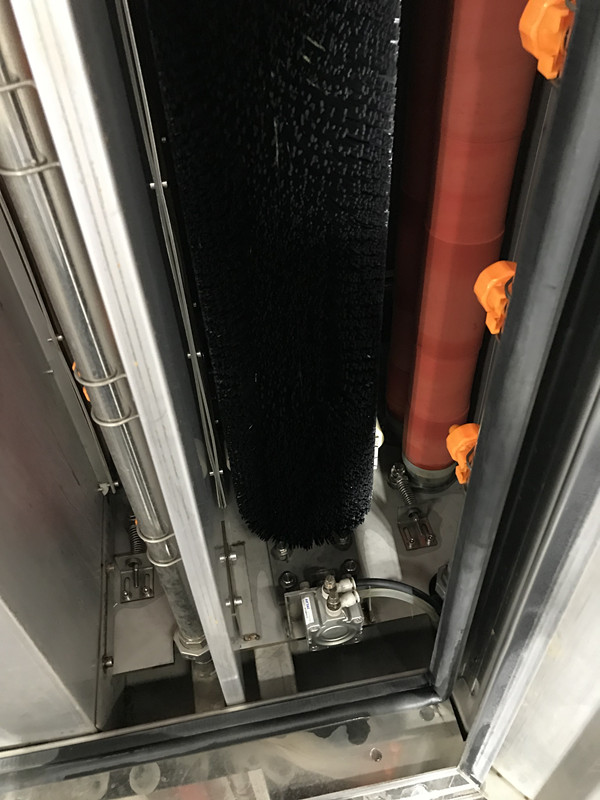

The washing and dry section
►Use 304 stainless steel. can wash 3-19mm thickness glass.
►The brush of the washing part is soft brush which can wash LOW-E glass.
►There is 6 motors and six brushes on this part, high efficiency.
►The bearing on this part is SKF bearing with stainless steel material.
It is water-proof bearing which can prolong the life of the machine.
►The distance between the red drag roller and air knife can adjusted automatically
according to the glass thickness.

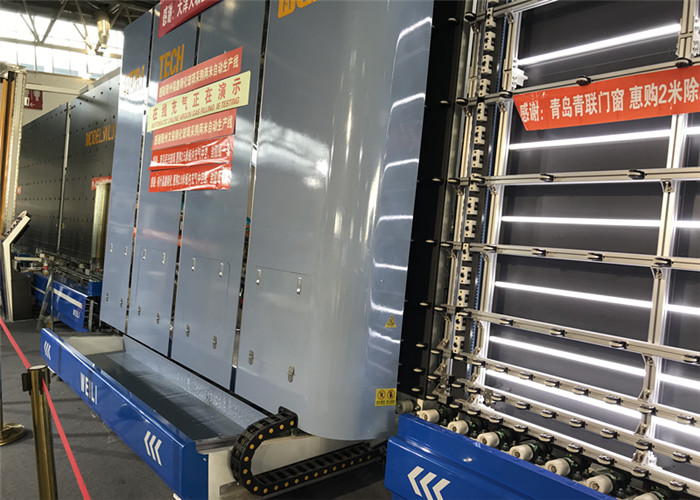

Flat press Section
♦Linear guides, ball screw, synchronous belt and servo motor to drive
which make the press stable and precise.
♦Online automatic argon gas filling function .Argon gas is≥90%(1mx1m)
♦It can open 450mm for maintenance
